3 Roller Pyramid Type Plate Rolling Machine

Name: 3 Roller Pyramid Type Plate Rolling Machine
Brand: KIRAN HYDRAULICS
Price: 646000 INR
Availability: InStock

646000 INR/Number

Get a Price/Quote

Product Details:

Cooling System Air-cooled
Frequency 50 Hz
Production Capacity Customizable as per requirement
Accuracy 0.5 mm
Frame Type Rigid Welded Steel Frame
Power Rating 7.5-15 HP (depending on model)
Features Heavy Duty Welded Construction, Hardened and Ground Rolls, Overload Protection, Emergency Stop
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

3 Roller Pyramid Type Plate Rolling Machine Price And Quantity

Price 646000 INR/Number
Minimum Order Quantity 1 Number

Accessories Included Standard Toolkit, Operation Manual
Lifting System Motorized (Optional)
Maintenance Low, with accessible lubrication points
Top Roll Diameter 220 mm
Operation Panel Ergonomic and User-Friendly
Roll Material Alloy Steel, Induction Hardened
Roller Surface Hardness 50-55 HRC
Suitable Materials Mild Steel, Stainless Steel, Aluminum
Compliance Meets Indian Industrial Standards
Bottom Roll Diameter 200 mm
Main Shaft Material EN8/EN19 Alloy Steel
Back Roll Movement Manual / Motorized
Roll Adjustment Mechanical Screw Type
Maximum Plate Width 2500 mm
Minimum Bending Diameter 450 mm
Safety Mechanism Emergency Stop Button, Safety Guards

3 Roller Pyramid Type Plate Rolling Machine Product Specifications

Usage & Applications Metal sheet/plate bending for fabrication, boiler, shipbuilding, construction
Surface Treatment Paint Coated / Anti-corrosive
Power Source Electric
Accuracy 0.5 mm
Color Industrial Blue/Grey
Dimension (L*W*H) 3750 x 1400 x 1350 mm
Production Capacity Customizable as per requirement
Frequency 50 Hz
Pressure Adjustable, up to 250 tons
Cooling System Air-cooled
Operating Type Semi-Automatic
Voltage 415 V
Drive Gear Driven
Machine Type Pyramid Type Plate Bending
Model No PRM-3050
Technology Pyramid 3-Roller Mechanical Bending
Operating Temperature 5C to 45C
Plastic Processed Not Applicable (for metal plates only)
Connectivity Options N/A (standalone operation)
Lubricating System Centralized Manual Greasing
Control System Manual/Panel Control
Product Type 3 Roller Pyramid Type Plate Rolling Machine
Weight (kg) 3500 kg (approx.)
Noise Level < 80 dB
Power 7.5 kW
Motor Power 7.5 kW Universal Motor
Frame Type Rigid Welded Steel Frame
Features Heavy Duty Welded Construction, Hardened and Ground Rolls, Overload Protection, Emergency Stop
Power Rating 7.5-15 HP (depending on model)

Accessories Included Standard Toolkit, Operation Manual
Lifting System Motorized (Optional)
Maintenance Low, with accessible lubrication points
Top Roll Diameter 220 mm
Operation Panel Ergonomic and User-Friendly
Roll Material Alloy Steel, Induction Hardened
Roller Surface Hardness 50-55 HRC
Suitable Materials Mild Steel, Stainless Steel, Aluminum
Compliance Meets Indian Industrial Standards
Bottom Roll Diameter 200 mm
Main Shaft Material EN8/EN19 Alloy Steel
Back Roll Movement Manual / Motorized
Roll Adjustment Mechanical Screw Type
Maximum Plate Width 2500 mm
Minimum Bending Diameter 450 mm
Safety Mechanism Emergency Stop Button, Safety Guards

3 Roller Pyramid Type Plate Rolling Machine Trade Information

FOB Port MUMBAI PORT
Payment Terms Telegraphic Transfer (T/T)
Delivery Time 45 Days
Sample Policy If order is confirmed we will reimburse the sample cost
Packaging Details WOODEN BOX
Main Domestic Market All India
Certifications ISO9001:2015

Product Description

Make

Model KHPR1500

Machine Size 1500mmWidth x 20mm MS 8mm ss Plate

Top Roll Dia 240mm

Bottom Roll Dia 200mm

Motor Details

Motor 15HP RPM 1440 Horizontal Foot Mounted IE2 IP 55

Make Motor SIEMENS HINDUSTAN ABB

Precision and Power for Diverse Metal Bending Needs

Engineered with a heavy-duty welded steel frame and gear-driven technology, the PRM-3050 machine ensures accurate bending with 0.5 mm precision. It suits various materials, including mild steel, stainless steel, and aluminum, making it a versatile choice for industries ranging from fabrication workshops to shipbuilding yards. The induction-hardened rollers and centralized lubrication keep performance consistent over years of operation.

User-Friendly Operation and Safety Features

The PRM-3050 comes with an ergonomic operation panel, user manual, and standard toolkit for easy setup and use. Safety is prioritized through emergency stop buttons, safety guards, and overload protection, creating a secure work environment. The machine's manual or motorized controls adapt to operator preferences, while paint-coated surfaces provide corrosion resistance.

Low Maintenance and Compliance with Quality Standards

Maintenance of the PRM-3050 is straightforward, thanks to easily accessible lubrication points and centralized greasing. The design complies with Indian industrial standards, and with a low noise level (< 80 dB) and air-cooled system, the machine fits seamlessly into most industrial environments. Production capacity and operating features can be customized to meet specific project requirements.

FAQ's of 3 Roller Pyramid Type Plate Rolling Machine:

Q: How does the 3 Roller Pyramid Type Plate Rolling Machine operate?

A: The PRM-3050 uses a gear-driven pyramid configuration, with mechanical screw-type roll adjustment for precise plate bending. The back roll movement can be operated manually or motorized, allowing smooth and accurate forming of metal sheets up to 2500 mm in width.

Q: What types of materials can this plate rolling machine handle?

A: This machine is designed for mild steel, stainless steel, and aluminum plates, making it ideal for a wide range of metal fabrication, construction, and shipbuilding applications.

Q: When should I choose the motorized back roll movement option?

A: Opt for the motorized back roll movement if your workflow requires frequent adjustments or handling heavier plate materials. This feature increases operational efficiency and reduces manual effort, especially in high-volume production environments.

Q: Where can the PRM-3050 be effectively used?

A: The machine is suitable for fabrication shops, shipbuilding yards, boiler manufacturing units, and construction sites, offering reliable performance for any industry needing precision metal bending.

Q: What is the process for adjusting plate thickness and pressure?

A: Roll adjustment is managed through a mechanical screw system, with plate pressure customizable up to 250 tons, allowing you to tailor settings based on material thickness and bending radius requirements.

Q: How does the built-in safety system benefit operators?

A: Emergency stop buttons, safety guards, and overload protection ensure operator safety by minimizing accident risks during operation. These features align with industrial best practices and standards.

Q: What maintenance does the machine require?

A: Routine maintenance is minimal, involving regular checks at accessible lubrication points and centralized manual greasing. The user-friendly design and included operation manual facilitate straightforward upkeep to ensure extended machine life.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Plate Rolling Machine' category

Excellent Quality Pyramid Type Plate Bending Machine Minimum Order Quantity : 1 Operating Type : Other, SemiAutomatic Power Source : Other, Electric Color : Blue & Yellow Product Type : Other, Pyramid Type Plate Bending Machine Control System : Other, Manual & Electrical controls Surface Treatment : Other, Paint Coated Usage & Applications : Sheet metal bending, duct fabrication, cylindrical/curved component manufacturing, fabrication workshops Features : High precision bending, rugged construction, easy to operate, heavyduty gears, adjustable rear roll, safety features Voltage : 415 V / 3 Phase Power : 3 7.5 kW (depending on model) Technology : Other, Pyramid Roll Bending Machine Type : Pyramid Plate Bending Weight (kg) : 2000 3500 kg Pressure : Manual Adjustment Dimension (L*W*H) : Varies with model (typically 2500mm x 950mm x 1200mm)

Send Inquiry

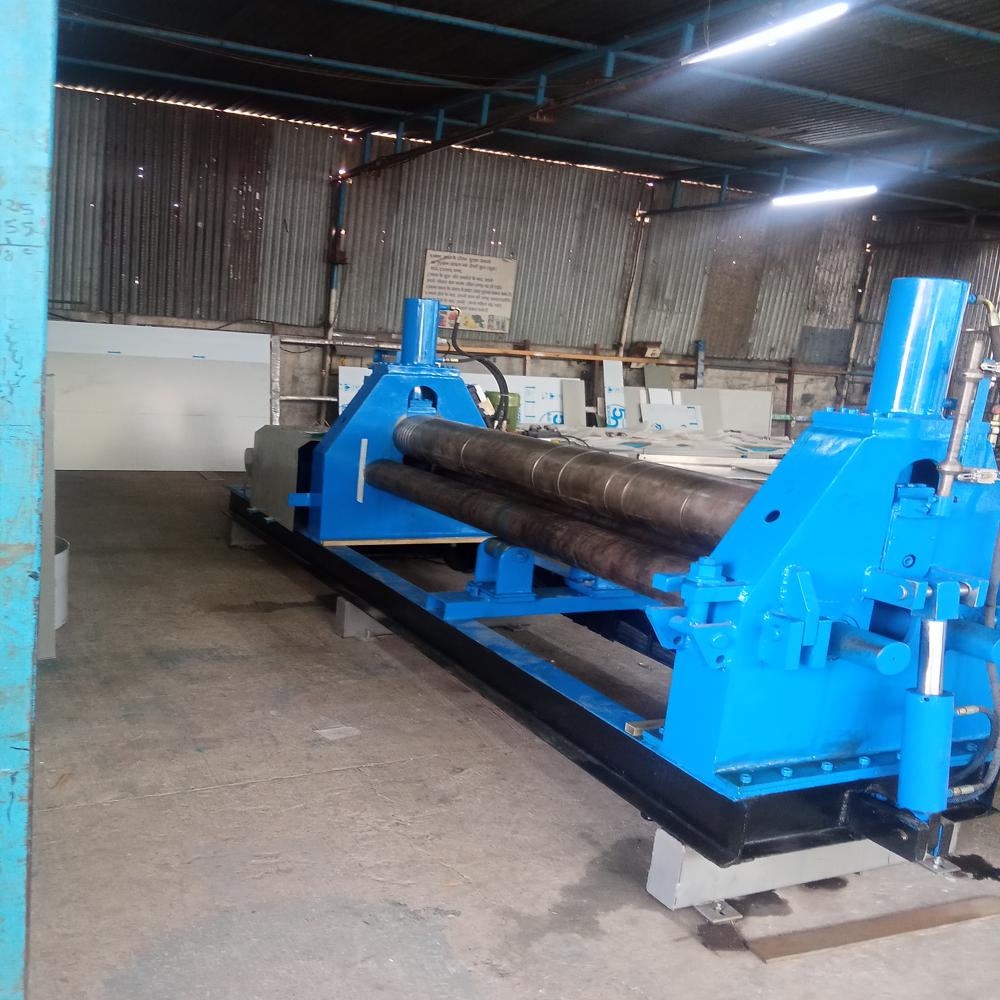

Hydraulic Plate Rolling Machine Price : 2449999.0 INR/Unit Minimum Order Quantity : 1 Operating Type : Semi Automatic Power Source : Hydraulic Color : as for party Product Type : Other Surface Treatment : Painted Usage & Applications : plate rolling Warranty : 12 Power : 40+10 Horsepower (HP) Technology : Other Machine Type : Hydraulic Weight (kg) : 15 Tonne Pressure : 250 kgf/m2 Dimension (L*W*H) : 6x1.5x2.5 Meter (m)
