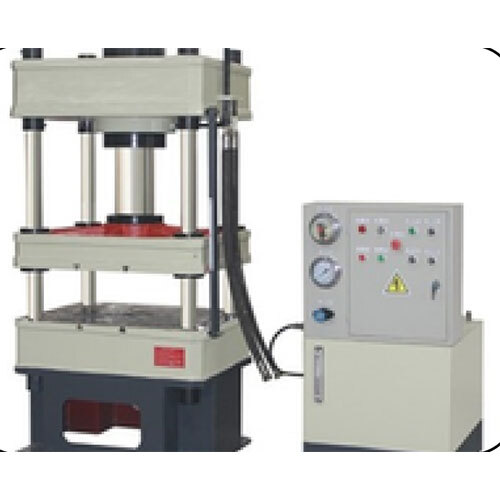

150 + 50 Ton Double Action Deep Draw Press Machine

Name: 150 + 50 Ton Double Action Deep Draw Press Machine
Brand: KIRAN HYDRAULICS
Price: 950000.0 INR
Availability: InStock

950000.0 INR/Unit

Get a Price/Quote

Product Details:

Power Source Electric
Features Good Quality
Usage Industrial
Body Material Steel
Size Standard
Product Type 150 Ton Power Press
Voltage 220-415 Volt (v)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

150 + 50 Ton Double Action Deep Draw Press Machine Price And Quantity

Price 950000.0 INR/Unit
Minimum Order Quantity 1 Unit

150 + 50 Ton Double Action Deep Draw Press Machine Product Specifications

Color Silver
Voltage 220-415 Volt (v)
Warranty 1 year
Size Standard
Body Material Steel
Power Source Electric
Product Type 150 Ton Power Press
Usage Industrial
Features Good Quality

150 + 50 Ton Double Action Deep Draw Press Machine Trade Information

FOB Port Now Mumbai
Payment Terms Cheque, Telegraphic Transfer (T/T), Cash in Advance (CID)
Supply Ability 1 Unit Per Month
Delivery Time 30 Days
Sample Available No
Sample Policy If order is confirmed we will reimburse the sample cost
Packaging Details Wooden Box
Main Export Market(s) Middle East, Africa, South America, Eastern Europe, Western Europe, Asia, Australia, Central America, North America
Main Domestic Market Manipur, Andhra Pradesh, Bihar, Chandigarh, All India, South India, Central India, West India, North India, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, East India, Gujarat, Daman and Diu, Goa, Jharkhand, Odisha, Assam, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal
Certifications ISO

Product Description

Technical Data	KHDP 30	KHDP 60	KHDP 100	KHDP 150	KHDP 250
Maximum Opening Force	30 M.T	60 M.T.	100 M.T.	150 M.T.	250 M.T.
Maximum Opening Force	15 M.T.	30 M.T.	50 M.T.	50 M.T.	100 M.T.
Size of platen table	380X380 mm	500X500 mm	600 X 600 mm	600 X 600 mm	1000X1000 mm
Maximum Daylight	450 mm	600 mm	700 mm	800 mm	1000 mm
Minimum Daylight	250 mm	300 mm	350 mm	400 mm	500 mm
Difference Between Side Column	400 mm	530 mm	640 mm	750 mm	950 mm
Maximum stroke of piston	200 mm	300 mm	350 mm	400 mm	500 mm
Capacity deep draw	125 mm	150 mm	150 mm	200 mm	250 mm
Maximum working pressure	320 AMT	320 AMT	320 AMT	320 AMT	250 mm
Downward pishon speed under low pressure	75 mm/sec	75 mm/sec	75 mm/sec	75 mm/sec	75 mm/sec
Downward pishon speed under high pressure	75 mm/sec	75 mm/sec	75 mm/sec	75 mm/sec	75 mm/sec
Upward piston speed under low pressure	75 mm/sec	70 mm/sec	50 mm/sec	60 mm/sec	50 mm/sec
Upward piston speed under low pressure	7 mm/sec	4 mm/sec	2.2 mm/sec	4.5 mm/sec	6.4 mm/sec
Electric Motor	3 H.P	7.5 H.P	10 H.P	15 H.P	20 H.P
